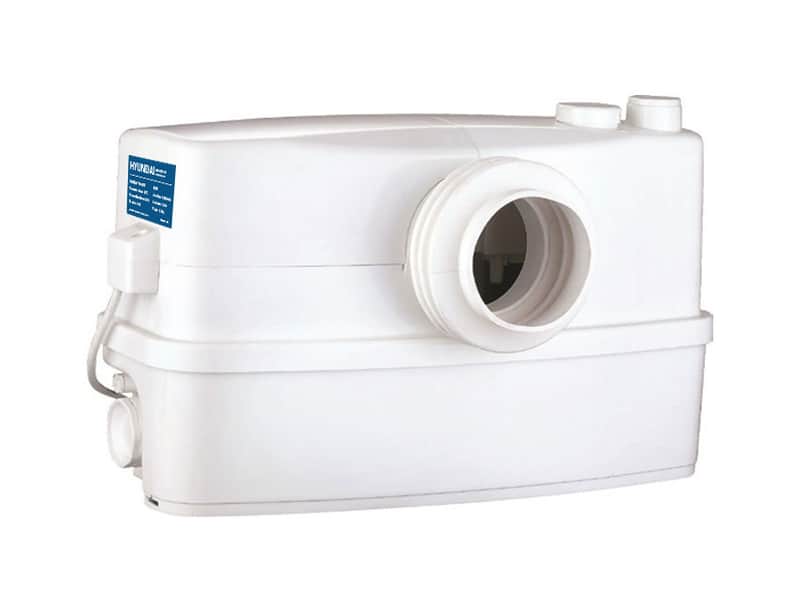

Hyundai Macerator Pump 600

You don't have to invest in expensive pipework to install a bathroom where there are no standard drains. This fully automatic macerator pump has a super smooth 600W motor and 2,800 RPM blades power a quality 304SS stainless steel pump impeller to make short work of all waste. It can pump up to 8.5 metres vertically and 90 metres horizontally in pipes as narrow as 22mm (see manual below for all inlet adaptor sizes). Recommended for use with: • Toilets • Kitchen sinks • Washing machines • Baths • Showers • Vanities • Dish washing machines • Dehumidifiers These pumps are easy to install and come with comprehensive detailed installation instructions and a 2 Year Hyundai Warranty. Power to the unit is via a power lead, which can be plugged into a standard wall socket. FEATURES • Powerful 600W, 2,800 RPM macerator pump • Pumping distance of 90m horizontally and 8.5m vertically • 4 waste connections • Quality 304SS stainless steel pump impeller • Replaceable carbon filter • Thermal cut-off prevents overheating • Controlled by pressure switch • Mains powered • 2 Year Hyundai Warranty SPECIFICATIONS Product code: HYWC600A Rated power: 600W Amperage: 3A Rated voltage: 230V Rated frequency: 50Hz Protection: IP44 Sound level: 85dB Insulation class: F Blade speed: 2,800 RPM Discharge head diameter: 40mm Flow rate at pump output: 6.5 m3/h Maximum discharge height (head): 8.5m Maximum horizontal length: 90m Maximum water temperature: 50°C Duty: S3-50% - 1min.(30 sec.on; 30 sec.off) Ambient temperature: +5°C to +35°C Supply cable: 1.5m, 0.75mm2 (H05VV-F-3G) Unit dimensions: W 474.5mm x D 210mm x H 352mm Net weight: 8.3 kgs GS and CE compliant.
