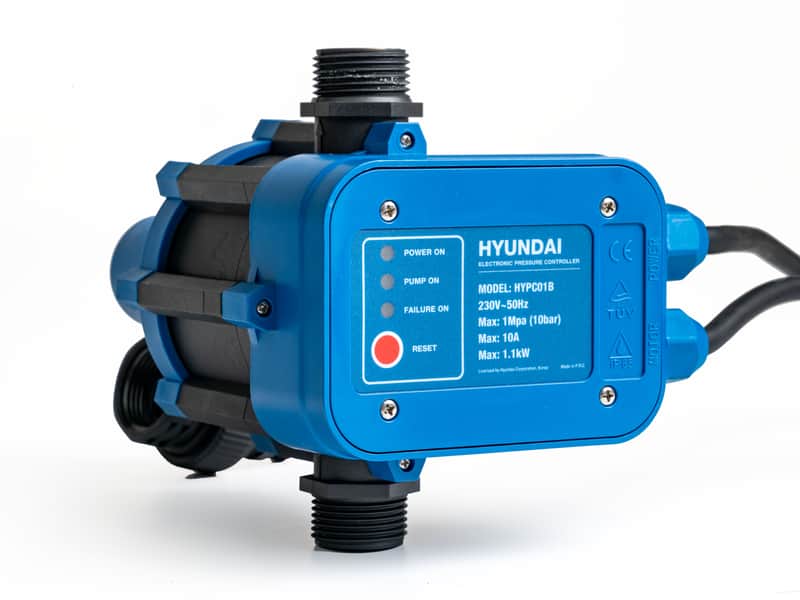

Hyundai Electronic Pressure Controller

Designed for optimum control of pumps used in plumbing systems, this intelligent design maintains both pressure and flow and controls the operation of the pump automatically. It needs no pressure tank as in the traditional systems. There are no plenum chambers to recharge and no irritating variation in pressure and in flow at the point of use. No adjustment or maintenance is required. It’s dependable, durable and simple to install. Functioning: The unit is programmed to perform all the pump control operations automatically. When particular operational breakdowns occur, such as water failure, obstruction of the suction pipe, etc, the unit recognises the breakdown and a red LED Failure lights up. At the same time a stop signal is sent to the pump to prevent damage caused by it working in the absence of water. After rectifying the cause of the failure, the system can be restarted by pressing the Reset button. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water pump FEATURES • Auto starts when the tap is turned on / pressure below 1.5bar • Provides constant pressure at constant flow • Constant operation at all flow levels • Automatic pressure control • R1” connector • IP65 weather protection • 2 power cables – 0.5m, 1.5m • Dry run protection protects the pump from damage • Eliminates water hammer • Protects plumbing • Compact and easy to install • Provides constant pressure • 1 Year Hyundai Warranty SPECIFICATIONS Rated voltage: 230V Max. current: 10A Max. power: 1.1kW Starting pressure setting: 1.5bar Max. working pressure: 10bar Connection thread: R1" Protection rating: IP65 Max. working temperature: 55℃ Wiring requirement: 7.5-9mm Package size: 26cm x 26cm x 26cm Weight: 1.5kg
